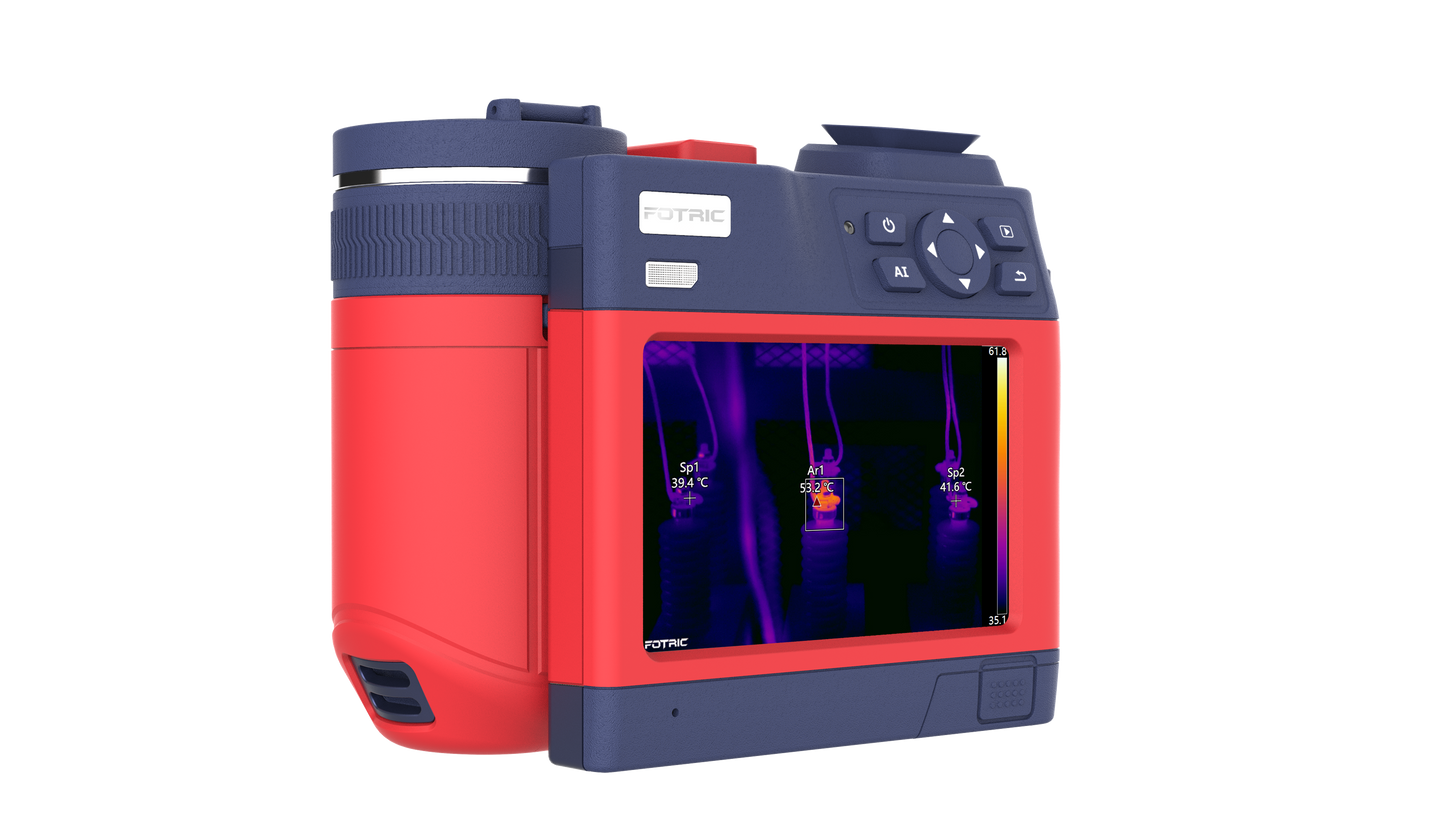

Fotric P9 Premium thermal imaging camera has true 1,310,720 (1280x1024 IR sensor) non-contact points of temperature measurement for quick identification of hot spots and potential points of failures.
Highlight Features
- 1280 x 1024 true native IR Resolution, Super Resolution 2,560 x 2048, 30Hz frame rate
- Thermal Sensitivity (NETD), ± 1℃ or ± 1 %, whichever is greater (ambient temp at 25℃ , temperature range 0° C-10° C), ± 2℃ or ± 2 % when reach to 1500℃
- 180 degree rotatable lens, standard 25° x 19° field of view (FOV) infrared lens
- Optional space saving 2-in-1 Dual-View lens: 7° & 25° Dual FOVs, 12° & 25° Dual FOVs
- Temperature measurement ranges: -20℃~120℃ (-4° F to 248° F), 0℃~700℃ (32°F to 1292°F), 300℃~2000℃ (572°F to 3632°F)
- Optional Low Temperature Expansion to -40°C (-40°F)
- Fast TurboFocus Auto/Manual focus lens, 16x Digital Zoom, 128GB expandable micro SD card
- 5 inch large HD vibrant touchscreen display of 1280 x 720 pixels Gorilla Glass Explosion-proof IPS LCD
- 13-megapixels extra sharp industrial grade extra digital camera
- 5-megapixels industrial grade side digital camera
- Optional 0.5 inch OLED View Finder, 800 x 600 pixels
- 30 spots, 30 boxes or circles, 30 lines onsite analysis
- Interchangeable lenses that no longer requires manual calibration if swapped
- Superior in-picture smart isolation of hot-spots for easy live analysis of areas of interest
- Laser assisted distance, area measurement and HawkAI OCR recognition
- Video File Formats: Full radiation thermal image video in IRS format, standard MPEG4 non-radiation video.
- Video Streaming: Radiometric IR Video Streaming over USB type-c interface, Non Radiometric streaming over HDMI HD Interface
- One-click favorite and Image annotation includes voice, text, on-screen sketch
- Enhanced image analysis and reporting through FOTRIC AnalyzIR Software (included with the camera). Fotric AnalyzIR pro system supports read-out of thermal measurements by temperature plot, Histogram and 3D graph
- Android platform operation system
- 2 Year Warranty, 10 year warranty to core detector
With its innovative TWB and IREdge imaging features and built-in artificial intelligence, the Fotric P series thermal cameras are the most affordable expert grade tool for various inspection jobs including electrical, building, mechanical, facilities maintenance, etc.
What's included with FOTRIC P7 thermal camera:
- Power supply for battery charger
- Power supply, 15 W/3 A
- Printed documentation
- SD card (64 GB for P4/P5, 128 GB for P6/P7, 256 GB for P8/P9)
- USB 2.0 A to USB Type-C cable, 1.0 m
- USB Type-C to HDMI adapter, standard specification UH311
- USB Type-C to USB Type-C cable (USB 2.0 standard), 1.0 m
- Battery (2 ea)
- Battery charger
- Hard transport case
- Infrared camera with lens
- Lens cap, front
- AnalyzIR pro software
Reference:
Note:
Restricted item for the export under the International Traffic in Arms Regulations, ITAR (22 CFR, Parts 120-130) or the Export Administration Regulations, EAR (15 CFR, Parts 730-774). Please ensure you comply with any regulatory licensing and documentation requirements associated with this product. For more information and guidance on these regulations, see the US Department of State website, the Bureau of Industry and Security website, and our military items policy.
