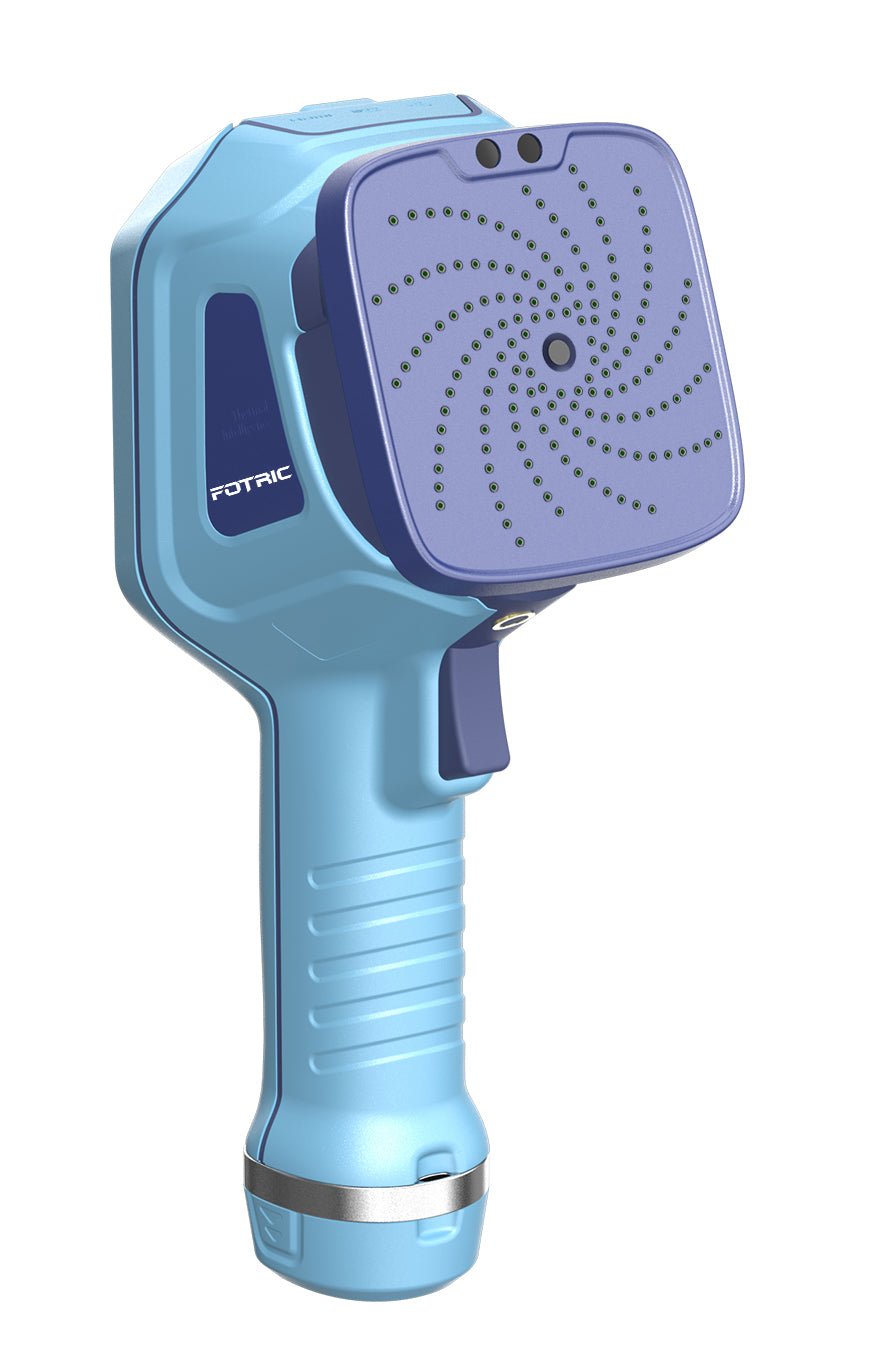

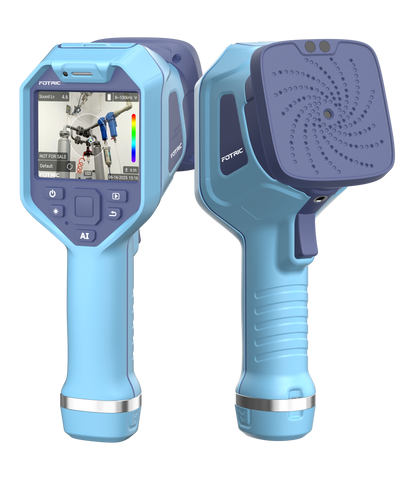

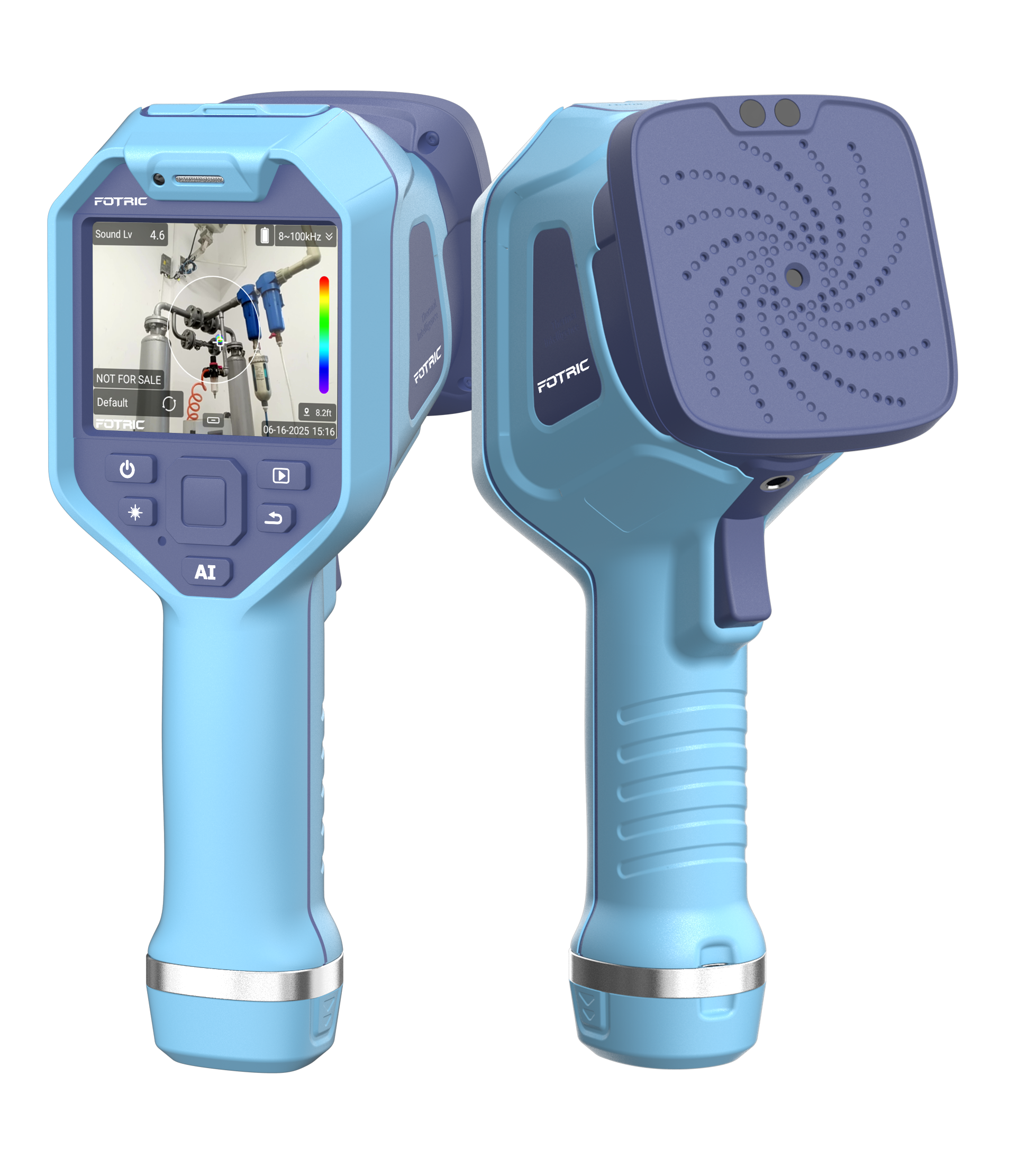

The FOTRIC TD2 is a compact, handheld ultrasound imaging tool engineered for industrial technicians whose mission is simple: find leaks fast, then fix them—no fluff, no extra steps. With zero need for soapy water, ultrasonic probes, or slow manual inspections, the TD2 delivers:
- Instant, contactless leak detection using advanced acoustic imaging
- Real-time pinpoint accuracy to locate leaks or faults on the go
- Compact and rugged design ideal for field use—even in tight or elevated spaces
Still Spraying Soapy Water?
Most factories still rely on outdated, manual methods to find compressed air leaks—wasting Time, Energy, and Money.
It's Time to Switch From Soapy Water to Smart Detection.
Unparallel Range, Extraordinary Sensitivity
64 Microphone Channels
Enhances signal clarity and spatial resolution for precise sound source localization.
2~ 100kHz Bandwidth Range
TD3-LD captures an extended acoustic spectrum, revealing hidden issues for thorough assessment and diagnosis.
0.3-100m Detection Distance
Covering distances from 0.3 to 130 meters, TD3-LD is ensuring comprehensive detection range.
.png)
3.5 Inches Touchscreen Display
Intuitive control enhances user interaction and simplifies operations.
⚙️ Key Advantages
| Feature | Benefit |
|---|---|
| 64‑mic MEMS array & beam‑forming | Accurately maps ultrasonic and audible sounds up to 100 kHz |
| 3.5″ touchscreen + 13 MP camera overlay | Offers clear visual context for rapid diagnostics |
| IP54-rated & battery‑powered (~4 hr runtime) | Ready for on‑site use in industrial environments |
💡 What the TD2 Makes Possible
- Compressed air/gas leak detection – spot tiny, high-frequency leaks instantly
- Vacuum and pneumatic system diagnostics – without shutdown or contact
- Mechanical fault spotting – catch loose fittings, bearings, or valve issues
- Automotive/tire inspection – quickly locate punctures without soap
👷♂️ Why Technicians Choose TD2
- Ultrasound simplified — no AI assessments, no data overthinking—just see the leak and fix it
- Robust, field-ready design — lightweight, easy to carry, and built for tough environments
- Immediate ROI — dramatically faster than traditional methods, saving time and resources
The FOTRIC TD2 redefines leak detection with intuitive acoustic imaging that transforms hidden sounds into clear visual signals. Perfect for maintenance teams in industrial, HVAC, automotive, and building inspection fields—if your job is to find it fast and fix it right, the TD2 gets the job done.
What's included with FOTRIC TD2 acoustic camera:
- Acoustic camera
- Power supply for battery charger, 15W/3A
- Battery (1 ea)
- Battery charger
- Printed documentation
- Micro SD card (32 GB)
- USB Type-C to USB cable (USB 2.0 standard), 1.0 m
- AnalyzIR Venu software
Note:
Restricted item for the export under the International Traffic in Arms Regulations, ITAR (22 CFR, Parts 120-130) or the Export Administration Regulations, EAR (15 CFR, Parts 730-774). Please ensure you comply with any regulatory licensing and documentation requirements associated with this product. For more information and guidance on these regulations, see the US Department of State website, the Bureau of Industry and Security website, and our military items policy.
- HTS/Schedule B number: 9031808085
- ECCN: EAR99
Main Specifications
* Click HERE to learn the Full Specifications for TD2 Acoustic Camera.
| Model | FOTRIC TD2 |
|---|---|
| Microphone channel | 64 MEMS digital microphones |
|
Acoustic Image Field of View (FOV) |
66° × 52° |
|
Sound Sampling Rate |
200kHz |
|
Acoustic Refresh Rate |
25Hz |
|
Operating Distance |
0.3~200m(1~626ft） |
|
Frequency Range
|
2~100kHz
|
|
Detection Mode |
Leakage mode: display leakage level on device |
|
Analysis Software
|
AnalyzIR Professional Acoustic Analysis Software |
|
Display Screen
|
3.5-inch, 640 x 480 pixels, IPS LCD touch display with Gorilla Glass explosion-proof cover
|
|
Image Modes
|
Single-source mode, multi-source mode, hologram mode
|
|
Digital Camera
|
13 Megapixels, Industrial-Grade Digital Camera
|
|
Size
|
243mm*95mm*150mm
|
|
Weight
|
770g
|
|
Acoustic Image Focus
|
Masks surrounding areas, focus only on the acoustic image of the focused area |
|
On-device Analysis
|
The device is capable of directly analyzing acoustic images
|
|
Gray Scale Background
|
Display digital camera images in grayscale
|
|
Favorites
|
Click the favorite button to save the favorite status to acoustic images and holographic acoustic videos, highlighted in the gallery preview screen, and later filter by favorite status
|
|
Storage Card
|
TF card, hot-swappable, maximum support 1TB |
| Battery Operating Time |
Actual usage time depends on environmental and usage conditions
|
|
Battery Type
|
3.6V, 5000mAh Rechargeable Lithium Battery, Field-Replaceable
|
|
Supported Languages
|
English, Traditional Chinese, Spanish, Korean, German, Portuguese, Italian, French, Thai
|
|
Standard Configuration
|
Acoustic imaging camera main unit, rechargeable lithium battery * 1, power adapter, USB Type-C to USB cable, 32G TF card, wrist strap, document bag (packing list, quick start guide), outer packaging box |
*Some features might be added or slightly altered according to the region and country
